railways

---

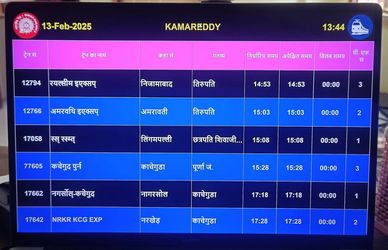

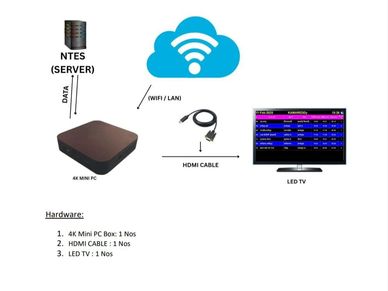

Skylark also manufactures APIs Based Live Train Information Display System (TIDS)

This system displays information in three languages, English, Hindi and local language. It provides the train information to passengers such as

• Train Number
• Train Name
• Source Station
• Destination Station
• Arrival / Departure
• Expected Time
• Platform Number
• Delay Time

Advantages of PSIS

• Live Trains Information Display On LED TV
• Configure available on Platform wise
• 100% Accurate and Real time data display
• Wired/Wireless Connectivity
• Low Cost
• Time Saving
• Easy to Maintainers

 Audio Announcement

1. The format of the operation for the updating and announcement user friendly
2. Provide one separate window for special announcement like courtesy, emergency etc.,
3. 16 bit digital voice messages with repeat option
4. Addition and deletion of voice messages by the operator
5. The details of information being announced displayed on the monitor.

GPS BASED PUBLIC ADDRESS & PASSENGER INFORMATION SYSTEM (PAPIS) & LED

DESTINATION BOARDS IN AC AND NON- AC COACHES is the Passenger address system

along with passenger information and LED destination board for providing all important

information in audio and visual form to the passengers. The system is equipped with

GPS technology for activating location-based audio visual information and features like

speed, locations of the coach etc.,

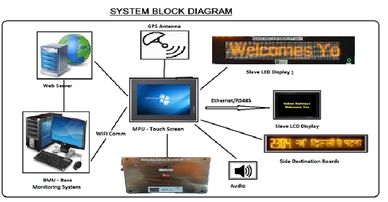

System Sub Modules:

1. Main Processor Unit (MPU)

2. Slave PIS Display Units

3. Destination Display Units

4. Passenger Addressing System

5. Web Server

6. Base Monitoring Unit (BMU)

7. Slave LCD display Panel

8. Emergency push button

9.Power Supply Unit

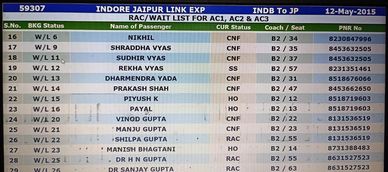

APIs Based Electronic Charting Display System:

This application provides Passenger Reservation Information in English languages to the passengers like

• PNR Number
• Passenger Name
• Age
• Coach Number
• Seat Number
• Source Station Code
• Destination Station Code

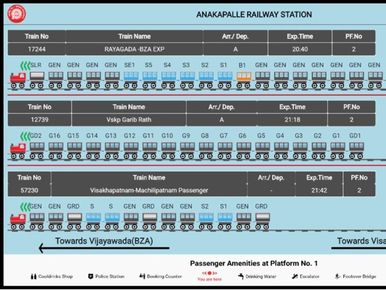

Skylark also manufactures Passenger & Station Information System(PSIS)

This system displays information in three languages, English, Hindi and local language. It provides the information to passengers such as

• Train Number
• Train Name
• Arrival / Departure
• Expected Time
• Platform Number
• Coach Positions and
• Platform Amenities

Advantages of PSIS

• Trains and Coaches Information Display On LED TV
• Configure available on Platform wise
• 100% Accurate and Real time data display
• Wired/Wireless Connectivity
• Low Cost
• Time Saving
• Easy to Maintainers

Integrated Passenger Information System (IPIS) covers PC based announcement system for announcing train information to passengers, electronic display boards for displaying train information to passengers and TV displays with the feature of networking and operation from a centralized place where application software runs.

1.  Control Console Unit (CCU)

2.   Main Data   Communication Hub (MDCH)
3. Platform Data Communication Hub (PDCH)

4.Train Arrival Departure Display Board (TADDB)

5. Multi - Line Display   Board

6  At-a-Glance Display   Board

7. Coach Guidance Display   Boards (CGDB)

8. Audio Announcement

9. Closed-Circuit   Television (CCTV)

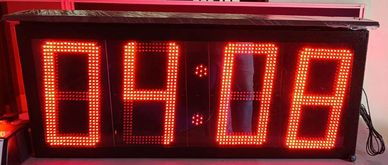

Skylark also manufactures GPS synchronized digital clocks that can operate in master slave topology, where the master clock can be monitored by authorized personnel. As the name explains, digital clocks are GPS synchronized for accurate date and time updates. Every clock is provided with individual GPS receiver antennae and is tested to work at all environmental conditions. Digital clocks are designed to be made use of at different places. We design digital clocks based on their usage namely Master clocks, Platform clocks and Office Complex clocks.

1.  MASTER CLOCK

2. PLATFORM CLOCK

3. OFFICE CLOCK

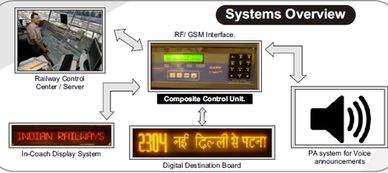

 This system is designed to facilitate passengers with information on present and next halting station through audio and visual displays using GPS in sub urban trains like EMUs (Electrical Multiple Units), MEMUs (Mainline Electrical Multiple Units) and DEMUs (Diesel Electrical Multiple Units). Unlike the present system of rotating the destination board (Head Code) by motor man, this system uses LED based Head Codes with necessary information like destination, via stations, number of cars etc.

  Includes:

1. DDC (Driver Desk Console)
2. HCDB (Head  Code Display Board)
3. ICDB (In  Coach Display Board)
4. AAU (Audio Announcement Unit) and Amplifier
5. Speakers
